GP70mm 46S 12Blades 70mm Duct Fan with 2150KV Outrunner Motor for RC EDF Jet Airplane RC Airplane Motor-in Parts & Accessories from Toys & Hobbies

Scroll to product details, material & care and sizing

$ 109.11

Add to cart Add to wishlist

boat jet rc, electric motor for airplane, duct fan, Wholesale changesun, Wholesale duct fan motor, Wholesale fan jet, Wholesale duct fan, Wholesale edf, Wholesale 64mm edf, Wholesale brushless jet, Wholesale duct fan rc,

GP70mm 46S 12Blades 70mm Duct Fan with 2150KV Outrunner Motor for RC EDF Jet Airplane RC Airplane Motor Details & Specification :

Item Specifications
Brand Name YOSOO
Material Metal
Size Approx. 10.5 * 8cm / 4.1 * 3.1inch
Tool Supplies Assembled class
Remote Control Peripherals/Devices Ducted Fan Motor
Use Vehicles & Remote Control Toys
Four-wheel Drive Attributes Motors
Model Number Ducted Fan Motor
For Vehicle Type Airplanes
Upgrade Parts/Accessories Ducted Fan Motor
RC Parts & Accs Motors
type Ducted Fan Motor
Voltage :4S -6S
Motor KV :2150KV
Thrust :2.3KG @ 24V, 74A
type1 RC Part

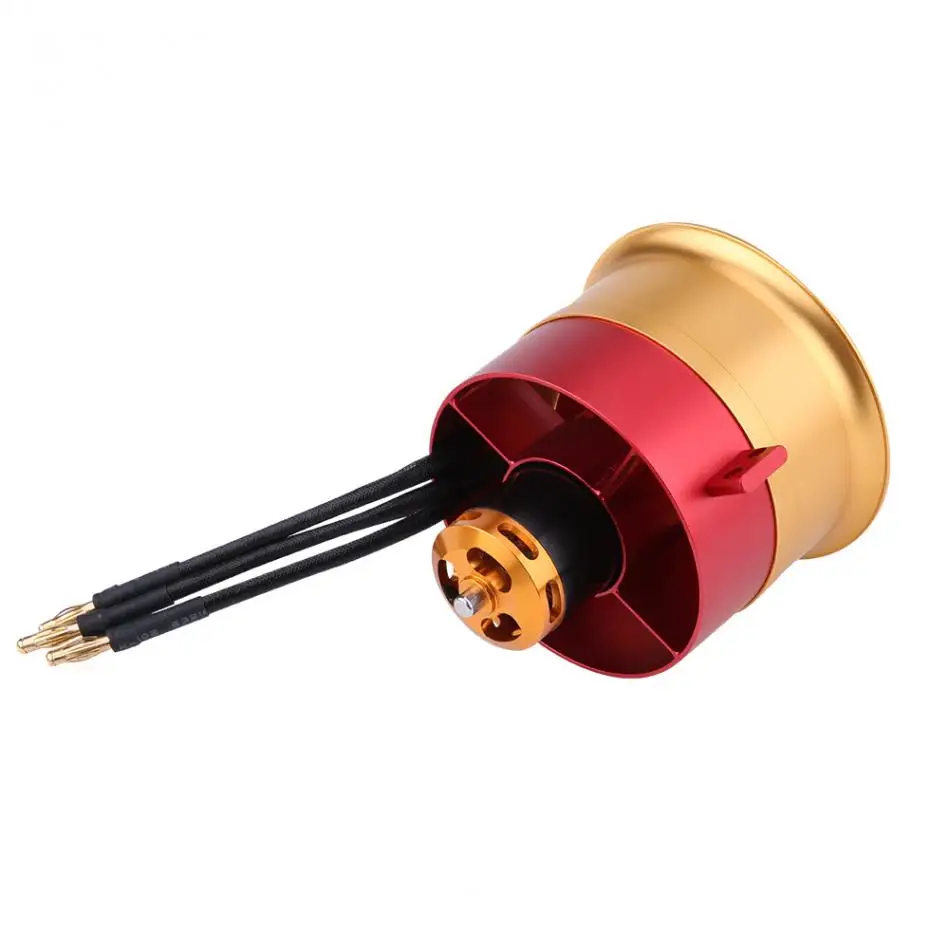

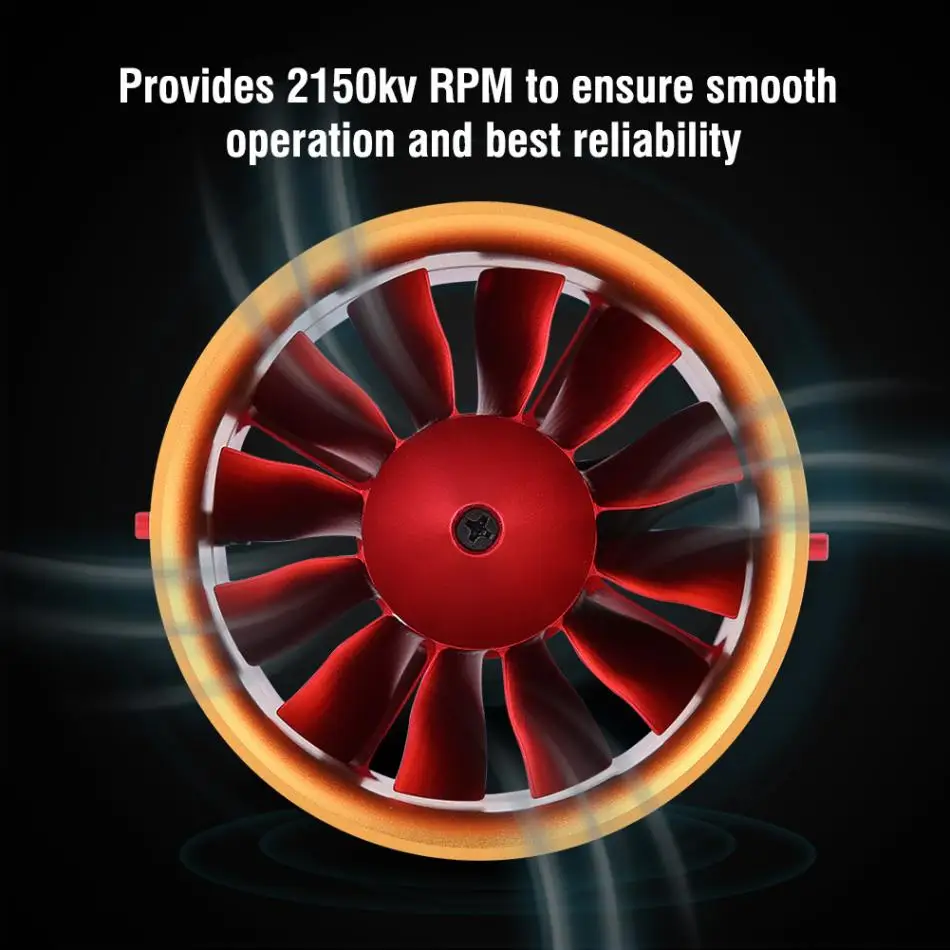

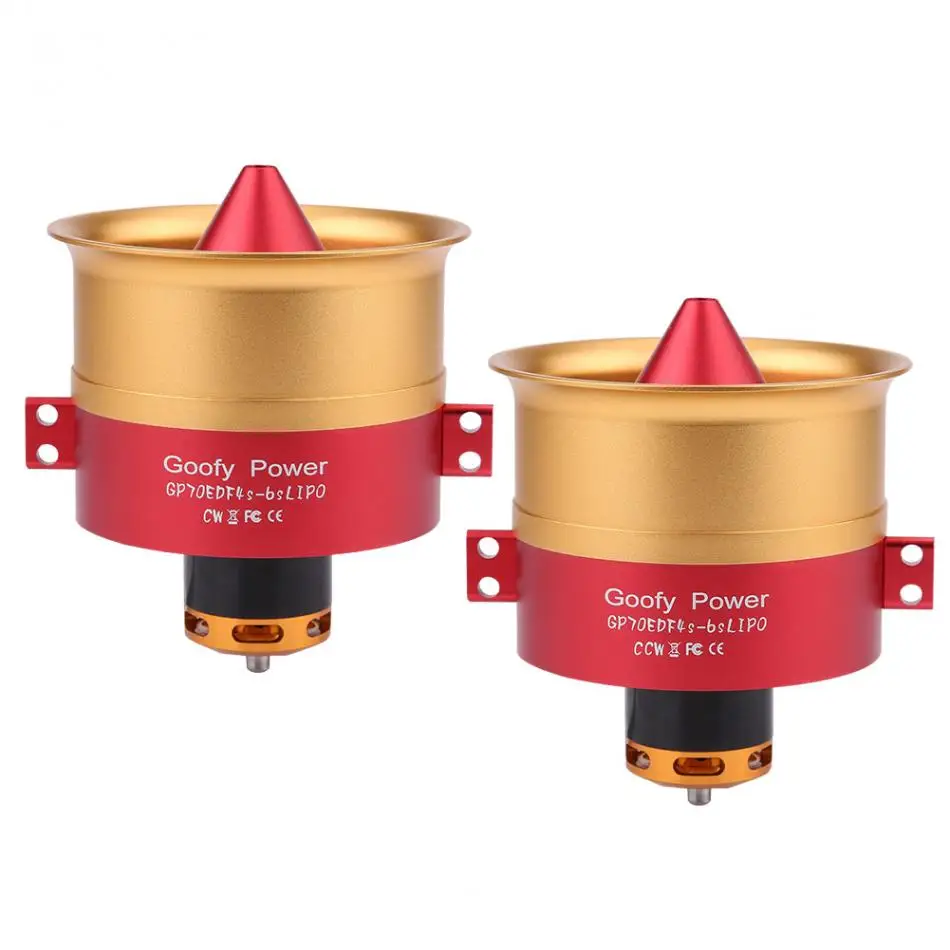

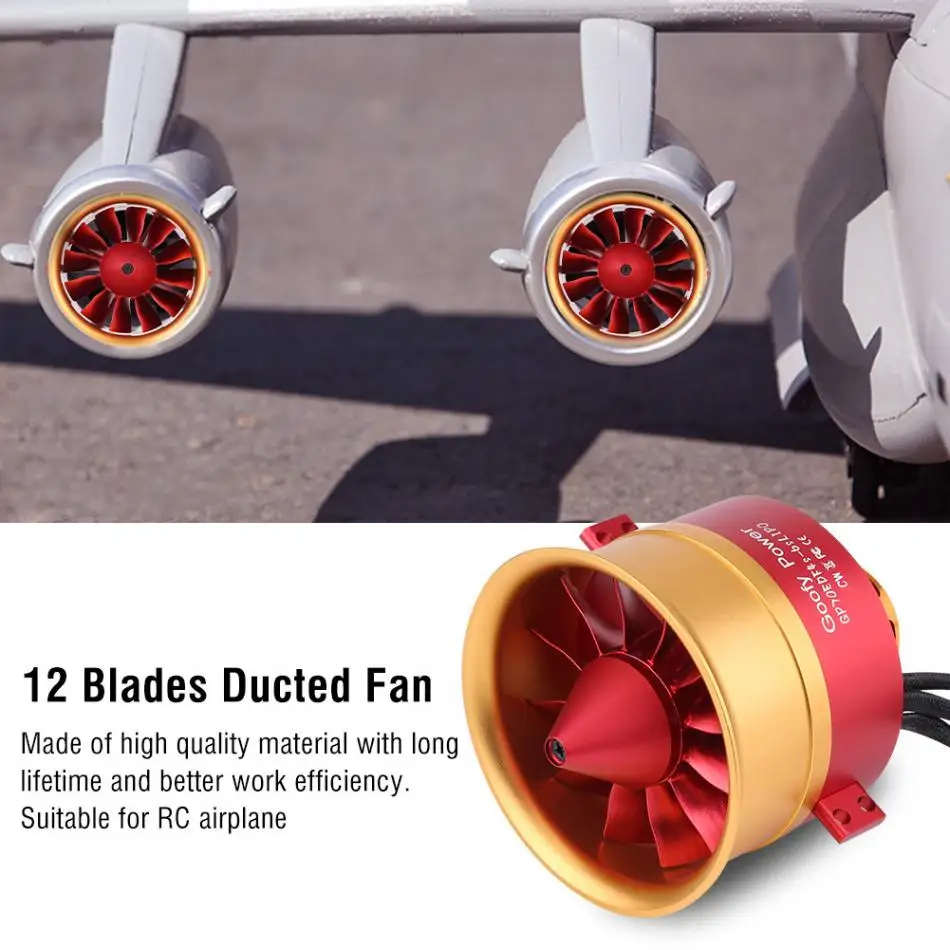

GP70mm 4-6S 12-Blades 70mm Duct Fan with 2150KV Outrunner Motor for RC EDF Jet Airplane RC Airplane Motor

GP 70mm CW/CCW
It is suitable for most RC Jet EDF airplane.
Recommend number of cells: 4s - 6s lipo battery.
All of the 12 blades of propellers are made of high-quality metal, deriving dynamic equilibrium.
Low noise during operation, showing better performance.
Strong power and high efficient for your RC airplane.
Material: Aluminium Alloy
Options: CW, CCW
Color: Shown As Pictures
Model: GP70mm
Voltage: 4S -6S
Motor KV: 2150KV
Thrust: 2.3KG @ 24V, 74A
Size: Approx. 10.5 * 8cm / 4.1 * 3.1inch
Weight: 454g
Type: RC Part
Package Includes:
1 x Motor
3 x Banana Female Plugs
3 x Heat Shrink Tubes

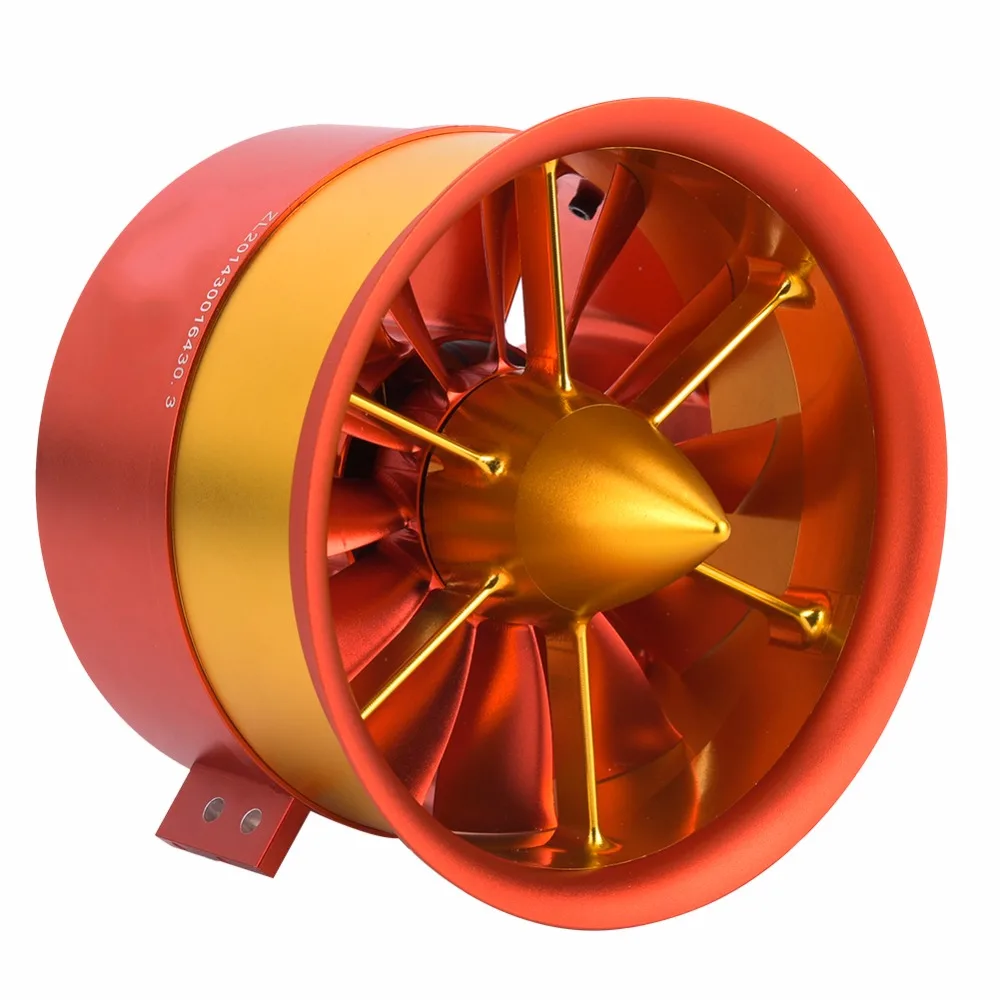

JP 105mm CW

1. CNC machining aluminum alloy material, durable and light in weight.
2. Provides a maximum space of 0.25mm between each edge of the blade and the FED shield to improve efficiency.
3. Good heat dissipation allows the engine to operate more efficiently and provide optimal performance while extending engine life.
4. 88,000 RPM to generate extremely high outflow rates, thus achieving maximum speed and efficiency.
5. Anti-splash blade design, no noise during operation, safety and having stable performance.
Condition: 100% Brand New
Type: 105mm 12s Cw
Model: JP 105mm
Working voltage: 12S LIPO lithium
Shell material: aluminum alloy
Fan blade: 12 blades
Motor model: 4260 840KV
Package Weight: 806 g / 28.4 oz(approx.)
Package List:
1 * JP 105mm Ducted Fan
1 * Bag of Accessory
1. Do not grasp ducted fan by hand for testing, it must be fixed on the test rack.
2. It is suggested to remove the motor flow guide cover to help heat dissipation and prolong the service life of the motor.
2. Compatibility problems may occur in different ESC and jP ducted fan matching. Please pay attention to whether the ducted fan runs smoothly when using it.
3. Set the electrical parameters to try again, if the ESC can not solve the problem, only to change another ESC.
3. It is recommended to purchase JP brand or famous brand ESC.
4. ESC setting: setting the entry Angle below 15° (low entry Angle).
5. During use, the ducted fan needs to be checked frequently.
6. After using for a long time. Due to inhalation of sand and gravel and blade damage, the dynamic balance may fail. If you feel the vibration of the ducted fan, it is suggested to send it back to the factory for maintenance.
If the vibration is too large, the blade will break and cannot be repaired. The broken blade can only be replaced with new blades.


GP 70mm CW/CCW



JP 105mm CW
